Dissolved Acetylene Gas Cylinder Valves

Min. Order: 1 Piece/Pieces

Product Description

Dissolved Acetylene Gas Cylinder Valves, Optional Spindle type Acetylene Cylinder Valve PF5-1 for C2H2 Gas Cylinders, Dissolved Acetylene Cylinder Valves, Acetylene Valve for C2H2 Gas Cylinders, acetylene(C2H2) Cylinder Valve PF5-1(A) for Acetylene Cylinders & Acetylene Supply System.
Dissolved Acetylene Gas Cylinder Valves
*Main Specs on Acetylene Valves PF5-1(A):

-Applicable medium: Dissolved acetylene;
-Structure: Needle Type/Spindle type/Hand-wheel type(OPTIONAL);
-Working Pressure: 3Mpa;
-Open-close torque: ≤ 10N. M
-Body Material: Brass HPb59-1;
-Stem Material: 2Cr13;
-Fusible alloy Action Range: 100± 5 degree;
-Body Weight: 850g± 10g;
-DN: Φ 4, Inlet Port Thread: PZ39(to-be-confirmed);
-GB10879-2009, TSG RF001-2009 standard approved
-Packaging Details: 25PCS/carton;
-Delivery Detail: Within 15 days;

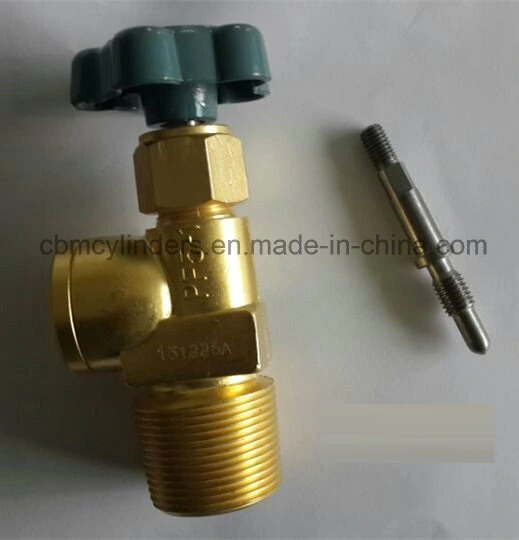

*Referenced Spindle type Acetylene Valve PF5-1:
Dissolved Acetylene Gas Cylinder Valves
 Dissolved Acetylene Gas Cylinder Valves

*Keywords: Dissolved acetylene cylinder valves PF5-1, Acetylene(C2H2) Cylinder Valve PF-1, Acetylene Valves PF5-1, C2H2 acetylene cylinder valves PF5-1, gas valves, brass valves PF5-1, gas cylinder valves.

A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.

The simplest, and very ancient, valve is simply a freely hinged flap which drops to obstruct fluid (gas or liquid) flow in one direction, but is pushed open by flow in the opposite direction. This is called a check valve, as it prevents or "checks" the flow in one direction.

Valves have many uses, including controlling water for Irrigation, Industrial uses for controlling processes, residential uses such as on / off & pressure control to dish and clothes washers & taps in the home. Even aerosols have a tiny valve built in. Valves are also used in the military & transport sectors.

Gas cylinder valves are found in virtually every industrial process, including water & sewage processing, mining, power generation, processing of oil, gas & petroleum, food manufacturing, chemical & plastic manufacturing and many other fields.

Our branch factory of gas valves is speicialized in different types of high or Low Pressure Gas Cylinder valves and metals fittings. To meet different clients' needs, the valves not only can be produced according to the Chinese National Standard GB, also the international standard, such as U. S. A. ANSI, Great Britain BS, Germany DIM, Japan JIS, and etc.


NO.Type  No.Produce Namesuitable MediumPN
(Mpa)
DN
(mm)
Outlet thread
(mm)
Jiont Thread to
cylinder (mm)
Temp./Pressure
 of safety device
1QF-15Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)33Φ21 clipΦ35.52/
2QF-15ABrass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34Φ21 clipGB8335 PZ39100deg±5deg
3QF-15A1Brass Acetylene Cylinder
 valve(C2H2 cylinder)
C2H2(acetylene)34Female Thread G5/8-LHGB8335 PZ39100deg±5deg
4QF-15A1BBrass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34Female Thread G5/8-LHGB8335 PZ39100deg±5deg
5QF-15A2Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34G5/8-LHGB8335 PZ39100deg±5deg
6QF-15A3Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34G1/2GB8335 PZ39100deg±5deg
7QF-15A5Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34G1/21-11½ -NGT/
8QF-15A6Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34G1/21¼ -11½ -NGT/
9QF-15A7Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34Φ21 clip1-11½ -NGT/
10QF-15A8Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34Female Thread G3/4GB8335 PZ39100deg±5deg
11QF-15A9Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34Φ21 clipGB8335 PZ27.8/
12QF-15A14Brass Acetylene Cylinder
valve(C2H2 cylinder)
C2H2(acetylene)34CGA300GB8335 PZ39100deg±5deg

European Acetylene Cylinder Valve for C2h2 Gas Cylinders
*About US:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.

*Advantages We Have:
-1). Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.


*NOTES:
-a). Various types of acetylene gas cylinder valves,cylinder caps,steel valve guards can be optional;

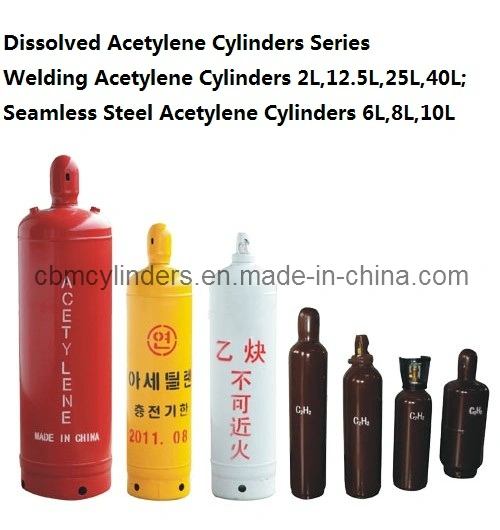

-b). We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved  Acetylene Cylinders(2L~60L).

Anyway,should you have any intersts or some more info needed on our acetylene gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!

Key Contact: Ethan Liu (Exp. Mgr)
Mob: +86-153 5606 5235
URL: http:// ;   http://


European Acetylene Cylinder Valve for C2h2 Gas Cylinders

European Acetylene Cylinder Valve for C2h2 Gas Cylinders
*An order of 20'ft of mixed gas cylinder tanks(O2/N2/Argon/Helium/Air cylinders & acetylene cylinders) is really welcome!

Contact us if you need more details on Dissolved Acetylene Gas Cylinder Valves. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Acetylene Gas Cylinder Valves、Acetylene Valves. If these products fail to match your need, please contact us and we would like to provide relevant information.
