Home > Products > Aluminum Alloy Gas Cylinders > Medical Aluminum Gas Cylinders > 4.6L DOT-3al Aluminum Oxygen Cylinder

4.6L DOT-3al Aluminum Oxygen Cylinder

Min. Order: 1 Piece/Pieces

Product Description

4.6L DOT-3AL Aluminum Oxygen Cylinder,Aluminum Oxygen Cylinder 4.6L(ME-size), ME-size (4.6L, OD=111mm)Pin type Aluminum O2 Cylinder for oxygen therapy system.
4.6L DOT-3al Aluminum Oxygen Cylinder
*Main Specs of ME-size/4.6 L Medical Aluminum Oxygen Cylinders (W/ Medical Pin Index Oxygen Valves):
-Cylinder OD: 111/4.38'';
-W. P. /T. P.: 139bar; (Normal) Wall Thickness: 7.1mm;
-(Normal)H: 645mm/25.4'';
-(Std)N. W.: 3.6KG/7.8LBS; Green silvery.
-W/ black plastic handle;
-Connecting Thread: 3/4-14UNF;
-Manufacturing Standard: DOT-3AL, EN1975 and etc.

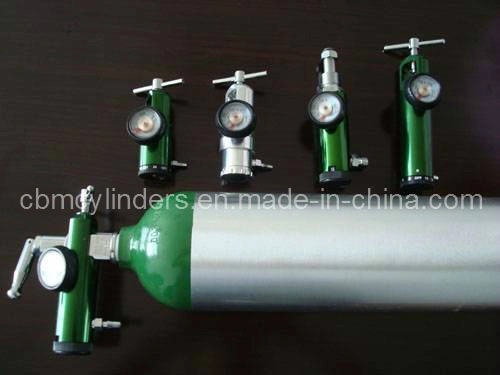

*Note: Various types of gas valves, oxygen regulators, & related gas accessaries can be offerred upon further kind request.
*Mat: Aluminium alloy 6061; Aluminum cylinder life-span over 15years.
4.6L DOT-3al Aluminum Oxygen Cylinder

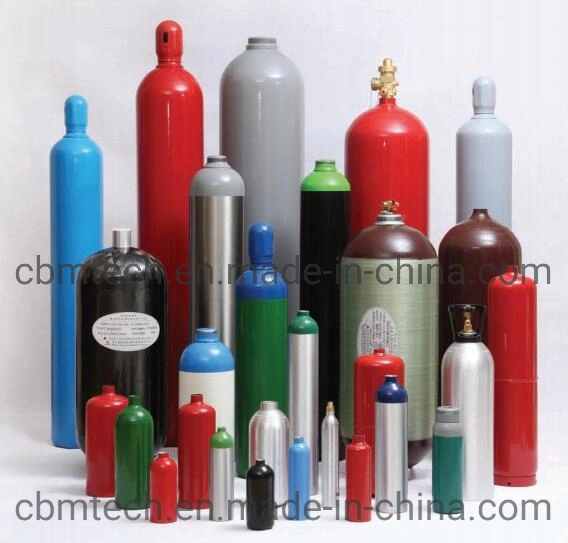

*NOTES: Our brother factory of alumminum gas cylinders can manufacture various types of gas cylinders with:
-1). Water Capacity: 0.5L~50Liter;
-2). Outer Diameter(OD): 60mm ~ 250mm;
-3). Working pressure: 150bar/200bar;
-4). Manufacturing std: DOT-3AA/ISO7866.
4.6L DOT-3al Aluminum Oxygen Cylinder 4.6L DOT-3al Aluminum Oxygen Cylinder

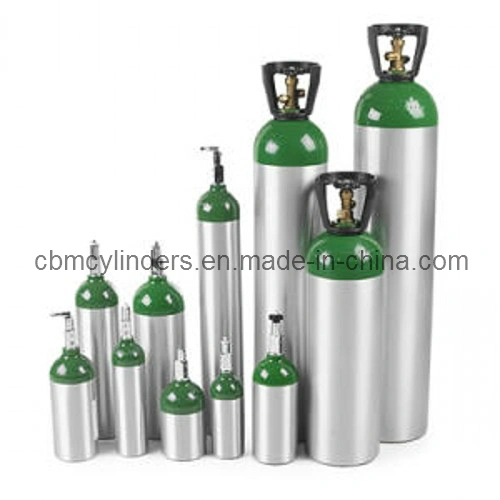

Lightweight Ambulance Breathing Oxygen Cylinders made from Aluminum Alloy Al6061 for home oxygen therapy, emergency medical services(EMS), pre-hospital care and hospitals, nursing homes, clinic supply and medical institutions.

Our Aluminum Alloy Gas Cylinders can be refilled with rare, high pure, calibration and special gases. They are made of superior quality aluminum alloy and manufactured through the procedures of punching, drawing, heat treatment, CNC flow forming spinning, anodic oxidation treatment to the inner surface, etc. It is used to be filled and refilled with various kinds of gases, such as rare gases, high purity gases, standard gases, special gases, with a wide range of applications in the chemical industry, electronic industry, medical treatment, gas and coal mining fields, which is the ideal substitute for the steel cylinder. We also have the ability to design and produce the seamless aluminum alloy cylinders with special specifications and technical requirements.

Referenced DOT-standard aluminum oxygen cylinders' specs:
Item ModelWater CapacityOutside DiameterLengthWeightWorking Pressure
          Lts / Cu in            mm / in            mm / inkg / lbsbar / psi
M20.30.663.52.51455.70.30.61532216
M40.71.581.53.22218.70.71.51532216
M612.381.53.230011.812.31532216
ML61.22.51114.41987.81.32.91392015
ML71.431114.42319.11.53.21392015
M91.73.81114.427710.91.73.71392015
MD2.96.41114.442416.72.45.41392015
M223.98.51335.241416.33.781532216
ME4.610.21114.464525.43.67.81392015
M6010.523.21847.2558222.910.122.31532216
M9015.734.71847.2582832.613.730.31532216
M12221.447.1203.2891936.217.939.51532216
M15028.963.7203.2811944722.148.81392015

4.6L DOT-3al Aluminum Oxygen Cylinder
4.6L DOT-3al Aluminum Oxygen Cylinder
4.6L DOT-3al Aluminum Oxygen Cylinder
*About Us:
We are a professional manufacturer and provider for Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Gas Cylinders, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas Cylinder Trolleys/Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.

4.6L DOT-3al Aluminum Oxygen Cylinder

*Advantages We Have:
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.

4.6L DOT-3al Aluminum Oxygen Cylinder
NOTES:
-a). Various types of O2 flowmeter regulators,steel/aluminum O2 gas cylinders,O2 gas cylinder valves,cylinder caps,steel valve guards can be optional;
-b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved  Acetylene Cylinders(2L~60L),as well as HP aluminum gas cylinders & allied gas valves,regulators.
4.6L DOT-3al Aluminum Oxygen Cylinder

Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!

Key Contact: Ethan Liu (Exp. Mgr)
Mob: +86-153 5606 5235
URL: http:// ;   http://
4.6L DOT-3al Aluminum Oxygen Cylinder

4.6L DOT-3al Aluminum Oxygen Cylinder


Contact us if you need more details on 4.6L DOT-3al Aluminum Oxygen Cylinder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about DOT-3al Aluminum Oxygen Cylinder、Aluminum Oxygen Cylinders. If these products fail to match your need, please contact us and we would like to provide relevant information.
